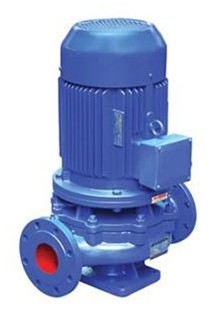

ISGD低轉速立式離心泵概述：
ISGD立式低轉速管道離心泵系在ISG系列基礎上并符合國際標準的性能參數，根據管道式離心泵的獨特結構組合設計而成，并嚴格按照國際標準ISO2858進行設計制造。
該產品采用國內水泵專家提供的最先進水力模型，高效節能，性能可靠，部分產品出口國外，深受國內外客商的贊譽。
ISGD低轉速立式離心泵用途：
ISGD型低轉速立式離心泵主要用于空調系統冷凍水，冷卻水循環及末端增壓，城市供熱系統局部或末端增壓循環，及城市建筑消防系統局部恒壓及各種空調熱水鍋爐配套。
ISGD低轉速立式離心泵特點：
ISGD型立式低轉速離心泵是在ISG 型立式離心泵基礎上配用低轉速電機，大幅度降低了運行噪音，成倍延長易損件使用壽命，最適用于空調循環及采暖循環和各種循環系統末端增壓。管道泵創新設計的立體式結構使其占地面積和占用空間更少，使用更方便。
ISGD低轉速立式離心泵工作條件：
低轉速離心泵所用的電機0.75kw以上泵系統最高工作壓力為1.6MPa即泵吸入口壓力+泵揚程≤1.6MPa，泵靜壓試驗壓力為2.5MPa，0.75kw以下泵系統最高工作壓力為0.8MPa。
訂貨時請注明系統工作壓力，泵系統工作壓力大于1.6MPa時，應在訂貨時另行提出，以便在制造時離心泵的過流部分和聯接部分采用鑄鋼材料。
低轉速離心泵介質為冷熱水或物理化學性質類似于水的液體，介質溫度不超過120℃。

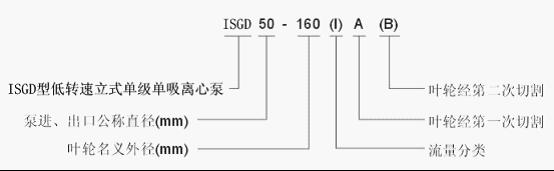

ISGD低轉速立式離心泵型號意義：

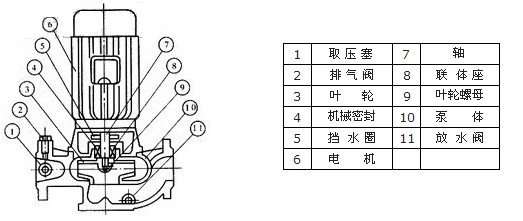

ISGD低轉速立式離心泵結構圖及結構說明：
1、泵與電機同端蓋，軸向尺寸縮短，結構簡單；
2、泵體上設有取壓孔和放水孔；
3、泵體上設有排氣閥，工作前能排放泵內空氣。
4、泵體底部設有安裝底板和螺栓孔，保證整體機組安裝穩固。
ISGD低轉速立式離心泵性能參數：
型號 |
流量Q |
揚程(M) |
效率(%)
|
轉速(r/min) |
電機功率
(KW) |
必需汽蝕
余量
(NPSH)r |
重量 |
|
(m3/h) |
(L/S) |
|
|
|
|
|
|
ISGD40-100 |
3.2 |
0.89 |
3 |
48 |
1400 |
0.12 |
2.5 |
17 |
ISGD40-125 |
3.2 |
0.89 |
5 |
40 |
1400 |
0.18 |
2.5 |
19 |
ISGD40-125A |
2.8 |
0.78 |
4 |
39 |
1400 |
0.12 |
2.5 |
19 |
ISGD40-160 |
3.2 |
0.89 |
8 |
36 |
1400 |
0.25 |
2.5 |
24 |
4ISGD0-160A |
2.8 |
0.78 |
6.4 |
35 |
1400 |
0.18 |
2.5 |
22 |
ISGD40-200 |
3.2 |
0.89 |
12.5 |
31 |
1450 |
0.55 |
2.5 |
38 |
ISGD40-200A |
2.8 |
0.78 |
10 |
30 |
1400 |
0.37 |
2.5 |
30 |
ISGD40-250 |
3.2 |
0.89 |
20 |
25 |
1450 |
1.1 |
2.5 |
52 |
ISGD40-250A |
2.8 |
0.78 |
16 |
25 |
1450 |
0.75 |
2.5 |
47 |
ISGD40-250B |
2.3 |
0.64 |
13 |
24 |
1450 |
0.55 |
2.5 |
46 |
ISGD40-100(I) |
6.3 |
1.75 |
3 |
54 |
1400 |
0.12 |
2.5 |
17 |
ISGD40-125(I) |
6.3 |
1.75 |
5.0 |
54 |
1400 |
0.25 |
2.5 |
29 |
ISGD40-125(I)A |
5.6 |
1.56 |
4.0 |
52 |
1400 |
0.18 |
2.5 |
24 |
ISGD40-160(I) |
6.3 |
1.75 |
8.0 |
47 |
1450 |
0.55 |
2.5 |
43 |
ISGD40-160(I)A |
5.1 |
1.42 |
5.3 |
45 |
1400 |
0.25 |
2.5 |
30 |
ISGD40-200(I) |
6.3 |
1.75 |
12.5 |
40 |
1450 |
0.75 |
2.5 |
45 |
ISGD40-200(I)A |
5.5 |
1.53 |
9.5 |
39 |
1450 |
0.55 |
2.5 |
44 |
ISGD40-250(I) |
6.3 |
1.75 |
20 |
32 |
1450 |
1.5 |
2.5 |
54 |
ISGD40-250(I)A |
5.6 |
1.56 |
16 |
32 |
1450 |
1.1 |
2.5 |
49 |
ISGD40-250(I)B |
5.1 |
1.42 |
13 |
30 |
1450 |
0.75 |
2.5 |
42 |
ISGD50-100 |
6.3 |
1.75 |
3 |
54 |
1400 |
0.12 |
2.5 |
19 |
ISGD50-125 |
6.3 |
1.75 |
5.0 |
54 |
1400 |
0.25 |
2.5 |
25 |
ISGD50-125A |
5.6 |
1.56 |
4.0 |
52 |
1400 |
0.18 |
2.5 |
19 |
ISGD50-160 |
6.3 |
1.75 |
8.0 |
47 |
1450 |
0.55 |
2.5 |
42 |
ISGD50-160A |
5.1 |
1.42 |
5.3 |
45 |
1400 |
0.25 |
2.5 |
37 |
ISGD50-200 |
6.3 |
1.75 |
12.5 |
40 |
1450 |
0.75 |
2.5 |
48 |
ISGD50-200A |
5.5 |
1.53 |
9.5 |
39 |
1450 |
0.55 |
2.5 |
46 |
ISGD50-250 |
6.3 |
1.75 |
20 |
32 |
1450 |
1.5 |
2.5 |
58 |
ISGD50-250A |
5.6 |
1.56 |
16 |
32 |
1450 |
1.1 |
2.5 |
50 |
ISGD50-250B |
5.1 |
1.42 |
13 |
30 |
1450 |
0.75 |
2.5 |
49 |
ISGD50-100(I) |
12.5 |
3.47 |
3 |
63 |
1400 |
0.25 |
2.5 |
23 |
ISGD50-125(I) |
12.5 |
3.47 |
5.0 |
63 |
1400 |
0.37 |
2.5 |
34 |
ISGD50-125(I)A |
11.0 |
3.06 |
3.8 |
60 |
1400 |
0.25 |
2.5 |
33 |
ISGD50-160(I) |
12.5 |
3.47 |
8 |
59 |
1450 |
0.55 |
2.8 |
46 |
ISGD50-160(I)A |
10.8 |
3.0 |
6 |
57 |
1400 |
0.37 |
2.8 |
34 |
ISGD50-200(I) |
12.5 |
3.47 |
12.5 |
54 |
1450 |
1.1 |
2.8 |
52 |
ISGD50-200(I)A |
11.3 |
3.14 |
10.1 |
53 |
1450 |
0.75 |
2.8 |
48 |
ISGD50-250(I) |
12.5 |
3.47 |
20 |
45 |
1450 |
2.2 |
2.8 |
73 |
ISGD50-250(I)A |
11.7 |
3.25 |
17.6 |
44 |
1450 |
1.5 |
2.8 |
65 |
ISGD50-250(I)B |
10.2 |
2.83 |
13.4 |
43 |
1450 |
1.1 |
2.8 |
60 |
ISGD50-315(I) |
12.5 |
3.47 |
32 |
36 |
1450 |
4.0 |
2.8 |
89 |
ISGD50-315(I)A |
11.7 |
3.25 |
28 |
36 |
1450 |
3.0 |
2.8 |
84 |
ISGD50-315(I)B |
10.2 |
2.81 |
21 |
34 |
1450 |
3.0 |
2.8 |
82 |
ISGD65-100 |
12.5 |
3.47 |
3 |
63 |
1400 |
0.25 |
2.8 |
29 |
ISGD65-125 |
12.5 |
3.47 |
5.0 |
63 |
1400 |
0.37 |
2.8 |
32 |
ISGD65-125A |
11.0 |
3.06 |
3.8 |
60 |
1400 |
0.25 |
2.8 |
27 |
ISGD65-160 |
12.5 |
3.47 |
8 |
59 |
1450 |
0.55 |
2.8 |
46 |
ISGD65-160A |
10.8 |
3.0 |
6 |
57 |
1400 |
0.37 |
2.8 |
35 |
ISGD65-200 |
12.5 |
3.47 |
12.5 |
54 |
1450 |
1.1 |
2.8 |
52 |
ISGD65-200A |
11.3 |
3.14 |
10.1 |
53 |
1450 |
0.75 |
2.8 |
48 |
ISGD65-250 |
12.5 |
3.47 |
20 |
45 |
1450 |
2.2 |
2.8 |
76 |
ISGD65-250A |
11.7 |
3.25 |
17.6 |
44 |
1450 |
1.5 |
2.8 |
68 |
ISGD65-250B |
10.2 |
2.83 |
13.4 |
43 |
1450 |
1.1 |
2.8 |
63 |
ISGD65-315 |
12.5 |
3.47 |
32 |
36 |
1450 |
4.0 |
2.8 |
89 |
ISGD65-315A |
11.7 |
3.25 |
28 |
36 |
1450 |
3.0 |
2.8 |
85 |
ISGD65-315B |
10.1 |
2.81 |
21 |
34 |
1450 |
3.0 |
2.8 |
82 |
ISGD65-100(I) |
25 |
6.94 |
3 |
70 |
1400 |
0.37 |
2.8 |
33 |
ISGD65-125(I) |
25 |
6.94 |
5 |
70 |
1450 |
0.75 |
2.8 |
49 |
ISGD65-125(I)A |
21.8 |
6.05 |
3.8 |
65 |
1450 |
0.55 |
2.8 |
48 |
ISGD65-160(I) |
25 |
6.94 |
8 |
68 |
1450 |
1.1 |
2.8 |
54 |
ISGD65-160(I)A |
21.6 |
6.0 |
6.0 |
65 |
1450 |
0.75 |
2.8 |
48 |
ISGD65-200(I) |
25 |
6.94 |
12.5 |
64 |
1450 |
2.2 |
2.8 |
71 |
ISGD65-200(I)A |
23.3 |
6.47 |
10.9 |
63 |
1450 |
1.5 |
2.8 |
62 |
ISGD65-250(I) |
25 |
6.94 |
20 |
59 |
1450 |
3.0 |
2.8 |
85 |
ISGD65-250(I)A |
22.2 |
6.17 |
15.8 |
58 |
1450 |
2.2 |
2.8 |
80 |
ISGD65-250(I)B |
19.8 |
5.5 |
12.6 |
57 |
1450 |
1.5 |
2.8 |
74 |
ISGD65-315(I) |
25 |
6.94 |
32 |
50 |
1450 |
5.5 |
2.8 |
120 |
ISGD65-315(I)A |
23 |
6.39 |
27.9 |
50 |
1450 |
4.0 |
2.8 |
110 |
ISGD65-315(I)B |
20.2 |
5.61 |
21 |
49 |
1450 |
3.0 |
2.8 |
100 |
ISGD80-100 |
25 |
6.94 |
3 |
70 |
1450 |
0.37 |
2.8 |
33 |
ISGD80-125 |
21.8 |
6.94 |
5 |
70 |
1450 |
0.75 |
2.8 |
48 |
ISGD80-125A |
25 |
6.05 |
3.8 |
65 |
1450 |
0.55 |
2.8 |
45 |
ISGD80-160 |
21.6 |
6.94 |
8 |
68 |
1450 |
1.1 |
2.8 |
55 |
ISGD80-160A |
25 |
6.0 |
6.0 |
65 |
1450 |
0.75 |
2.8 |
51 |
ISGD80-200 |
23.3 |
6.94 |
12.5 |
64 |
1450 |
2.2 |
2.8 |
72 |
ISGD80-200A |
25 |
6.47 |
10.9 |
63 |
1450 |
1.5 |
2.8 |
64 |
ISGD80-250 |
22.2 |
6.94 |
20 |
59 |
1450 |
3.0 |
2.8 |
89 |
ISGD80-250A |
19.8 |
6.17 |
15.8 |
58 |
1450 |
2.2 |
2.8 |
85 |
ISGD80-250B |
25 |
5.5 |
12.6 |
57 |
1450 |
1.5 |
2.8 |
78 |
ISGD80-315 |
23 |
6.94 |
32 |
50 |
1450 |
5.5 |
2.8 |
130 |
ISGD80-315A |
20.2 |
6.39 |
27.9 |
50 |
1450 |
4.0 |
2.8 |
102 |
ISGD80-315B |
50 |
5.61 |
21 |
49 |
1400 |
3.0 |
2.8 |
95 |
ISGD80-100(I) |
50 |
13.89 |
3 |
73 |
1450 |
0.75 |
3.0 |
58 |
ISGD80-125(I) |
44.6 |
13.89 |
5 |
73 |
1450 |
1.1 |
3.0 |
61 |
ISGD80-125(I)A |
50 |
12.4 |
4 |
63 |
1450 |
1.1 |
3.0 |
61 |
ISGD80-160(I) |
44.5 |
13.89 |
8 |
73 |
1450 |
2.2 |
3.0 |
82 |
ISGD80-160(I)A |
50 |
12.36 |
6.3 |
71 |
1450 |
1.5 |
3.0 |
74 |
ISGD80-200(I) |
44.6 |
13.89 |
12.5 |
72 |
1450 |
3.0 |
3.0 |
97 |
ISGD80-200(I)A |
50 |
12.36 |
9.9 |
71 |
1450 |
2.2 |
3.0 |
93 |
ISGD80-250(I) |
44.5 |
13.89 |
20 |
66 |
1450 |
5.5 |
3.0 |
134 |
ISGD80-250(I)A |
50 |
12.97 |
17.4 |
65 |
1450 |
4.0 |
3.0 |
106 |
ISGD80-250(I)B |
44.6 |
11.22 |
13.1 |
63 |
1450 |
3.0 |
3.0 |
100 |
ISGD80-315(I) |
50 |
13.89 |
32 |
61 |
1450 |
11.0 |
3.0 |
180 |
ISGD80-315(I)A |
46.7 |
12.97 |
27.9 |
61 |
1450 |
7.5 |
3.0 |
166 |
ISGD80-315(I)B |
40.5 |
11.22 |
21 |
60 |
1450 |
5.5 |
3.0 |
62 |
ISGD100-100 |
50 |
13.89 |
3 |
73 |
1450 |
0.75 |
3.0 |
70 |
ISGD100-125 |
50 |
13.89 |
5 |
73 |
1450 |
1.1 |
3.0 |
68 |
ISGD100-125A |
44.6 |
12.4 |
4 |
63 |
1450 |
1.1 |
3.0 |
68 |
ISGD100-160 |
50 |
13.89 |
8 |
73 |
1450 |
2.2 |
3.0 |
87 |
ISGD100-160A |
44.5 |
12.36 |
6.3 |
71 |
1450 |
1.5 |
3.0 |
79 |
ISGD100-200 |
50 |
13.89 |
12.5 |
72 |
1450 |
3.0 |
3.0 |
100 |
ISGD100-200A |
44.6 |
12.36 |
9.9 |
71 |
1450 |
2.2 |
3.0 |
90 |
ISGD100-250 |
50 |
13.89 |
20 |
66 |
1450 |
5.5 |
3.0 |
140 |
ISGD100-250A |
46.7 |
12.97 |
17.4 |
65 |
1450 |
4.0 |
3.0 |
112 |
ISGD100-315 |
50 |
13.89 |
32 |
61 |
1450 |
11.0 |
3.0 |
225 |
ISGD100-315A |
46.7 |
12.97 |
27.9 |
61 |
1450 |
7.5 |
3.0 |
180 |
ISGD100-315B |
40.5 |
11.22 |
21 |
60 |
1450 |
5.5 |
3.0 |
165 |
ISGD100-125(I) |
100 |
27.78 |
5 |
78 |
1450 |
2.2 |
3.0 |
95 |
ISGD100-125(I)A |
87.1 |
24.2 |
3.8 |
76 |
1450 |
1.5 |
3.0 |
87 |
ISGD100-160(I) |
100 |
27.78 |
8 |
78 |
1450 |
4.0 |
3.0 |
118 |
ISGD100-160(I)A |
87.1 |
24.2 |
6.3 |
76 |
1450 |
3.0 |
3.0 |
113 |
ISGD100-200(I) |
100 |
27.78 |
12.5 |
75 |
1450 |
5.5 |
3.0 |
148 |
ISGD100-200(I)A |
86.1 |
23.92 |
9.3 |
73 |
1450 |
4.0 |
3.0 |
123 |
ISGD100-250(I) |
100 |
22.78 |
20 |
74 |
1450 |
11.0 |
3.0 |
208 |
ISGD100-250(I)A |
93.3 |
25.92 |
17.4 |
73 |
1400 |
7.5 |
3.0 |
165 |
ISGD100-250(I)B |
87 |
24.17 |
15 |
72 |
1450 |
5.5 |
3.0 |
149 |
ISGD100-315(I) |
100 |
22.78 |
32 |
71 |
1450 |
15.0 |
3.0 |
234 |
ISGD100-315(I)A |
91.0 |
25.28 |
27 |
71 |
1450 |
11.0 |
3.0 |
213 |
ISGD100-315(I)B |
79.0 |
21.94 |
20 |
70 |
1450 |
7.5 |
3.0 |
165 |
ISGD100-400(I) |
100 |
22.78 |
50 |
65 |
1450 |
30.0 |
3.0 |
375 |
ISGD100-400(I)A |
94 |
26.11 |
44 |
65 |
1450 |
22.0 |
3.0 |
295 |
ISGD100-400(I)B |
87 |
24.17 |
38 |
64 |
1450 |
18.5 |
3.0 |
257 |
ISGD100-400(I)C |
81 |
22.56 |
32.8 |
62 |
1450 |
15.0 |
3.0 |
239 |
ISGD125-125 |
80 |
22.2 |
5 |
76 |
1450 |
2.2 |
3.0 |
148 |
ISGD125-125A |
71.5 |
19.9 |
4 |
75 |
1450 |
1.5 |
3.0 |
125 |
ISGD125-160 |
80 |
22.2 |
8 |
74 |
1450 |
3.0 |
3.0 |
205 |
ISGD125-160A |
69.3 |
19.3 |
6 |
73 |
1450 |
2.2 |
3.0 |
165 |
ISGD125-200 |
80 |
23.2 |
12.5 |
73 |
1450 |
5.5 |
3.0 |
249 |
ISGD125-200A |
75 |
20.8 |
11 |
72 |
1450 |
4.0 |
3.0 |
237 |
ISGD125-250 |
80 |
22.2 |
20 |
72 |
1450 |
7.5 |
2.8 |
220 |
ISGD125-250A |
75 |
20.8 |
17.5 |
71 |
1450 |
7.5 |
2.8 |
210 |
ISGD125-250B |
69 |
11.2 |
15 |
70 |
1450 |
5.5 |
2.8 |
195 |
ISGD125-315 |
80 |
22.2 |
32 |
67 |
1450 |
15.0 |
2.5 |
300 |
ISGD125-315A |
75 |
20.8 |
27.5 |
66 |
1450 |
11.0 |
2.5 |
282 |
ISGD125-315B |
72 |
20 |
25 |
65 |
1450 |
11.0 |
2.5 |
245 |
上一條：IHF氟塑料襯里離心泵
下一條：ISW臥式清水泵 |
